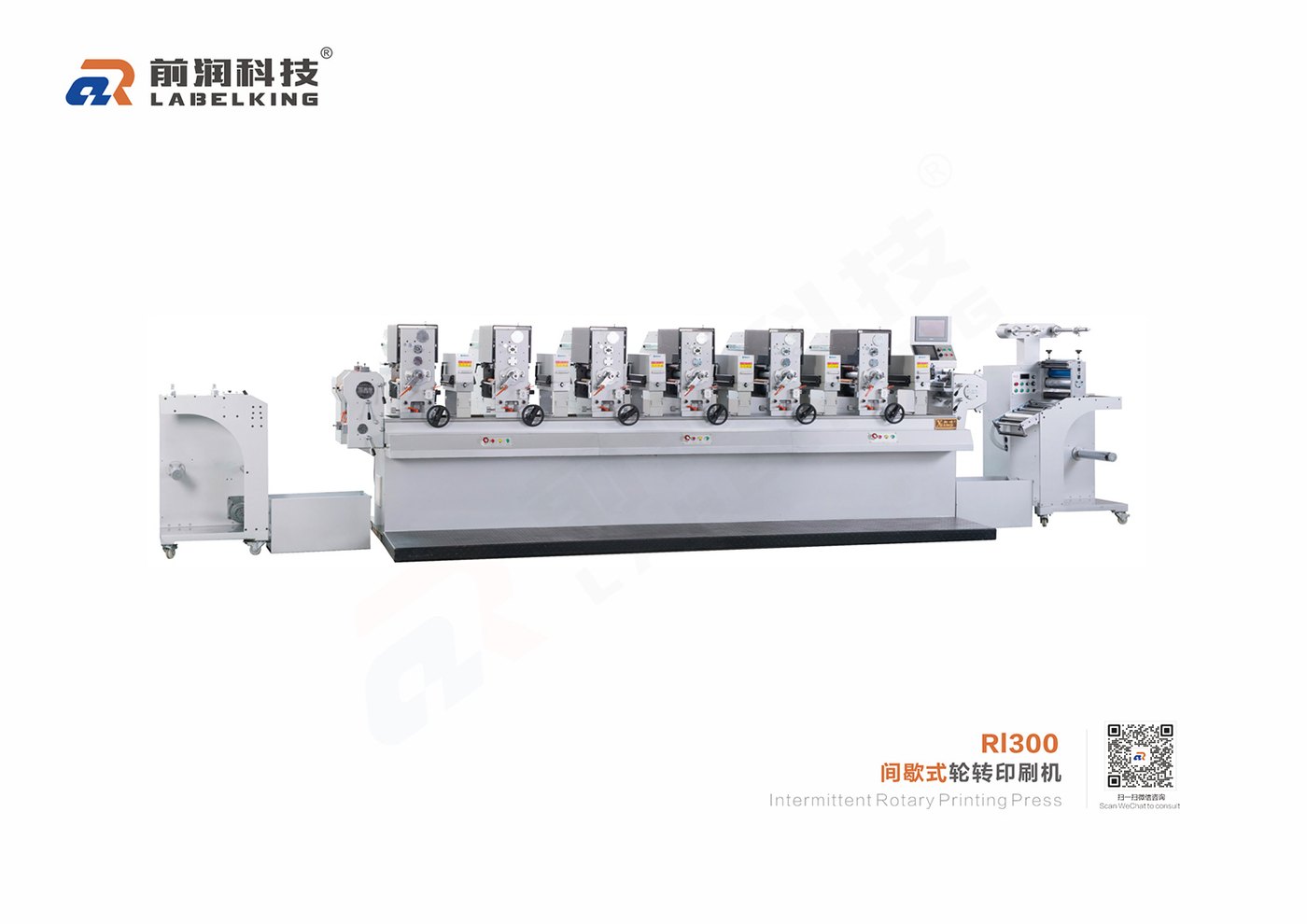

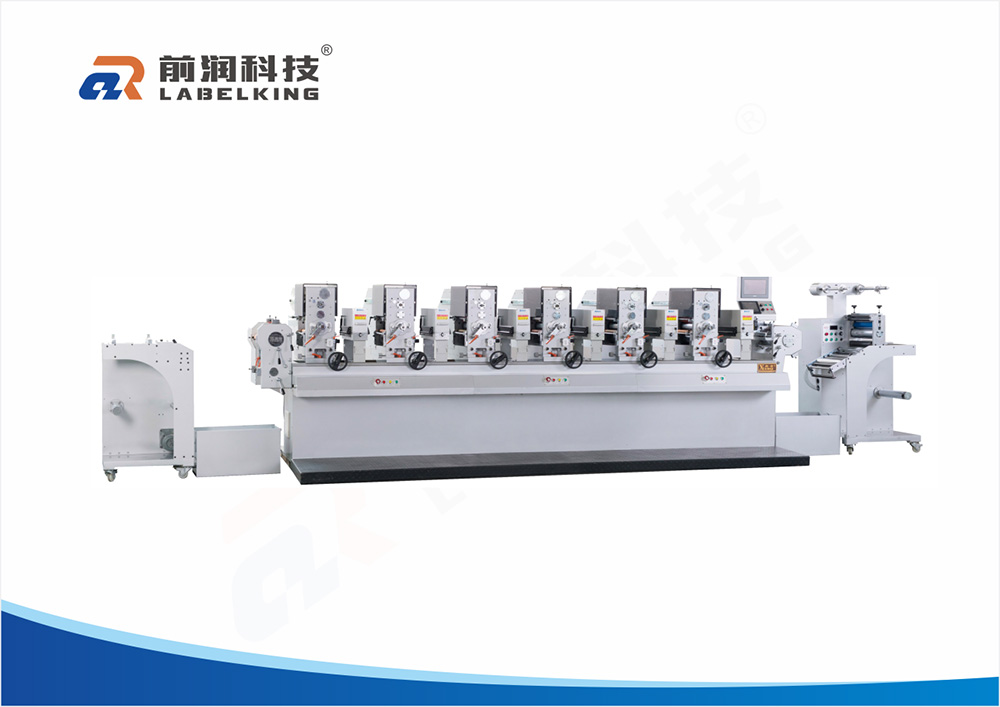

产品简介:新崎 RI300 间歇式轮转标签印刷机，是广东前润机械高端主力机型，专为中高端标签批量生产打造。采用全伺服无轴传动系统，间歇式走纸结构，套印精准、运行平稳。集成送料、多色印刷、UV 固化、覆膜、模切、收废、复卷一体工艺，适配不干胶、铜版纸、合成纸、PET、PVC、珠光膜、铝箔等卷装材料。可选配烫金、冷烫、喷码及品检装置。
应用领域:广泛应用于日化、食品、医药、电子、日化等行业
非标定制:
服务保障:非人为损坏提供一年售后服务,免费技术支持,终身提供服务!
联系我们:销售热线：180 2823 5969 客服热线：0769-85963666
1、卫星式全轮转印刷机，结构紧凑，操作方便。全伺服自动控制更进一步提升了机器的套准精度、工艺的灵活性及承印物的多元化。机器运转或停机时，可进行套准调停机启动，加减速套印不跑
Satellite full rotary printing machine features compact structure and easy operation. The full-servo automatic control further improves registration accuracy, process flexibility and substrate diversity. Registration adjustment can be performed whether the machine is running or stopped, and there is no registration deviation during start-up, shutdown, acceleration and deceleration.
2、相比普通商标机，套位更精准，速度可达 100M/min，印刷效果好，不变色，放墨更均匀。
Compared with ordinary label machines, it has higher registration accuracy, speed up to 100m/min, excellent printing quality, no discoloration and uniform ink output.
3、模切可用平刀和圆刀磁性滚轮模切系统。
Adopt flat blade and round blade magnetic roller die-cutting system for die cutting.
4、前中后冷烫，定位烫，局部烫，可同步完成，且烫金效果好，速度快。
Front, middle and rear cold stamping, positioning stamping and partial stamping can be finished synchronously with premium stamping effect and high speed.
5、可加背面印刷，实现背面同时多色印刷。
Optional back printing device to realize simultaneous multi-color printing on the reverse side.
6、除胶功能，底纸拨离，间隔除胶，局部除胶，同步涂胶及贴合。
Support glue removal, liner peeling, interval glue removal, partial glue removal, as well as synchronous gluing and laminating.
7、喷码技术，用于防伪条码标签设计工艺。
inkjet coding technology, applied to anti-counterfeiting barcode and label craftsmanship.
8、可配品检机，自动补标，智能品检，节省人工。
Matched with quality inspection machine for automatic label supplement and intelligent inspection, effectively saving labor cost.
9、电晕表面处理装置。
Corona surface treatment device.
10、筒设计保证了印刷套准精度，结构紧凑，操作方便。
Cylinder design guarantees printing registration accuracy, featuring compact structure and easy operation.
11、全伺服自动控制更进一步提升了机器的套准精度、工艺的灵活性及承印物的多元化。
Full-servo automatic control greatly improves registration accuracy, process flexibility and substrate diversity.
12、机器运转或停机时，可进行套准调节，优异的套准精度，无级调节的长度套准，各工作位置的横向套准可以 ±5 毫米进行调节。
Registration adjustment is available whether running or stopping. It adopts high-precision registration and stepless length registration; the lateral registration of each station is adjustable within ±5mm.
13、本机可完成工艺：多层标签、正反面印刷 9 色任意组合、局部除胶、前后中全息定位冷烫、二次自动定位模切、连线覆转印膜及无胶光膜。
Available processes: multi-layer label production, 9-color combined front and reverse printing, partial degumming, front/middle/rear holographic positioning cold stamping, secondary automatic positioning die-cutting, in-line transfer film laminating and glue-free glossy film laminating.
| 设备名称 Equipment Name | RI300间歇式轮转标签印刷机 RI300 Intermittent Rotary Label Printing Machine | |
| 机型 Type | 300 | 300 |
| 可选色组 Print Colors | 4 colors | 2 colors |
| 机械速度 Max mechanical speed | 60m/min | 60m/min |
| 最大印刷面积Max. Printing Width | 280*280mm | 280*280mm |
| 最小印刷面积 Max. Printing Circumference | 190.5mm (7.5") | 193.675mm (7 5/8") |
| 收放卷最大直径 Rewind/Unwind Max. Diameter | 800mm | 800mm |
| 机械功率 Power | 380V, 3ph, 45KVA, 50/60Hz | 380V, 3ph, 45KVA, 50/60Hz |
| 机械尺寸 Machine Size (L×W×H) | 5.8m × 1.8m × 2.25m | 5.8m × 1.8m × 2.25m |
| 机械重量 Net Weight | 4500 Kg | 5000 Kg |
| 操作语言 / Manipulation language | 中文/英文 / Chinese/English | 中文/英文 / Chinese/English |
两款核心区别在色组数量和功率：①色组——4C为4色（CMYK基础四色），6C为6色（可增加两专色或白墨+光油）；②功率——4C主机功率13.5kW、UV功率15.6kW，6C主机功率16.5kW、UV功率22.8kW，6C因多两个色组功耗更高；③尺寸——4C机器3.5×1.55×1.5米（净重3600kg），6C机器4.8×1.55×1.5米（净重5300kg），6C长约1.3米、重1.7吨。印刷面积相同：最大280×280mm、最小100×40mm。选型建议：常规四色标签选4C足够；需要专色（如金属色、荧光色）或白底+四色+光油的复杂标签选6C。
18000张/小时是XQ-RI300系列（4C/6C）的最高机械速度，换算为日产能：①按每天8小时、开机率70%计算——18000×8×0.7=100800张/天，约10万张；②按10小时工作制——约12.6万张/天；③实际产量受标签尺寸影响——标签越小（如50×30mm），同一幅宽内排版数量越多，实际出标数量可能更高；标签越大（如200×150mm），排版少，实际产能下降。与S5/S6的200m/min（按50mm周长约24000张/小时）相比，间歇式速度略低，但换版灵活、适合多品种切换。
XQ-RI300系列的印版支持四维微调，方便快速对版：①左右调整——通过HMI输入横向偏移量，伺服电机自动调节版筒横向位置，精度±0.02mm；②前后调整——调节版筒轴向位置（前后移动），解决走纸方向套印偏差；③对角调整——微调版筒角度，解决材料走偏导致的对角线不对齐；④上下调整——调节印刷压力，适应不同厚度的材料（从35微米薄膜到300微米卡纸）。所有调整均可通过HMI界面数字输入，无需手动拧螺丝。熟练操作工在10-15分钟内可完成全套对版调试，数控机型还可保存参数，同一版筒第二次上机时一键调用。
RS系列模切系统支持两种模式自由切换：①间隙模切——刀模滚筒转一圈、材料走一段停一下（间歇配合），适合不同长度标签的模切，不需要更换版筒，换单灵活；②全轮转模切——刀模滚筒与材料连续同步转动，适合大批量单一品种，速度更高、切口更干净。组合 meaning 是同一台设备可在这两种模式间切换（通过HMI界面选择），不需要更换硬件。实际生产中：小批量多品种用间隙模式，大批量长单用全轮转模式。一台设备兼顾两种需求，减少设备投资。
2023年，前润投入巨资打造一站式柔印机械解决方案，专注于柔版、凹版、数码、圆筒丝网印刷设备的研发与制造。我们紧跟国际一流工艺技术，推出可自由组合各种印刷工艺的多功能印刷设备，在行业中始终保持领先地位。 我们秉承"以客户为中心、以市场为导向、以技术为支撑、以管理为保障"的企业理念，以"创前沿，润无声"为信念，矢志不渝地追求技术创新与卓越品质，立志引领未来标签印刷设备行业迈向新的里程碑。 前润的足迹遍布全球，国内外设有多家分公司和办事处，产品远销多个国家和地区，赢得了国内外众多知名企业的青睐与合作。我们秉承“以客户为中心、以市场为导向、以技术为支撑、以管理为保障”的企业理念，以“创前沿，润无声”为信念，矢志不渝地追求技术创新与卓越品质，立志引领未来标签印刷设备行业迈向新的里程碑。我们坚守匠心制造，对印刷艺术怀有执着追求与无限热爱。在“拼搏进取 精益求精 开拓创新、感恩利他”的企业精神的引领下，为客户提供高效、稳定、环保的印刷解决方案。
In 2023, Qianrun invested heavily in creating one-stop flexographic printing machinery solutions, specializing in the R&D and manufacturing of flexographic, gravure, digital, and cylindrical screen printing equipment. By integrating cutting-edge international technologies, the company has launched versatile printing systems that combine multiple processes, maintaining its leadership in the industry.We adhere to the corporate philosophy of "customer-centric, market-oriented, technology-supported, management-guaranteed", and the belief of "the more innovations the more profits", and are committed to the pursuit of technological innovation and excellent quality, determined to lead the future label printing equipment industry to a new milestone. Qianrun's sales network are all over the world, with many branches and offices at home and abroad. Its products are sold to many countries and regions, and have won the favor and cooperation of many well-known companies at home and abroad. We adhere to the corporate philosophy of "customer-centric, market-oriented, technology-supported, management-guaranteed", and the belief of "the more innovations the more profits", and are committed to the pursuit of technological innovation and excellent quality, determined to lead the future label printing equipment industry to a new milestone. We adhere to the ingenuity of manufacturing, and have a passion for printing craftsmanship. Guided by the corporate spirit of "striving for progress, striving for excellence, pioneering and innovating, and being grateful and altruistic", we provide customers with efficient, stable and environmentally friendly printing solutions.
