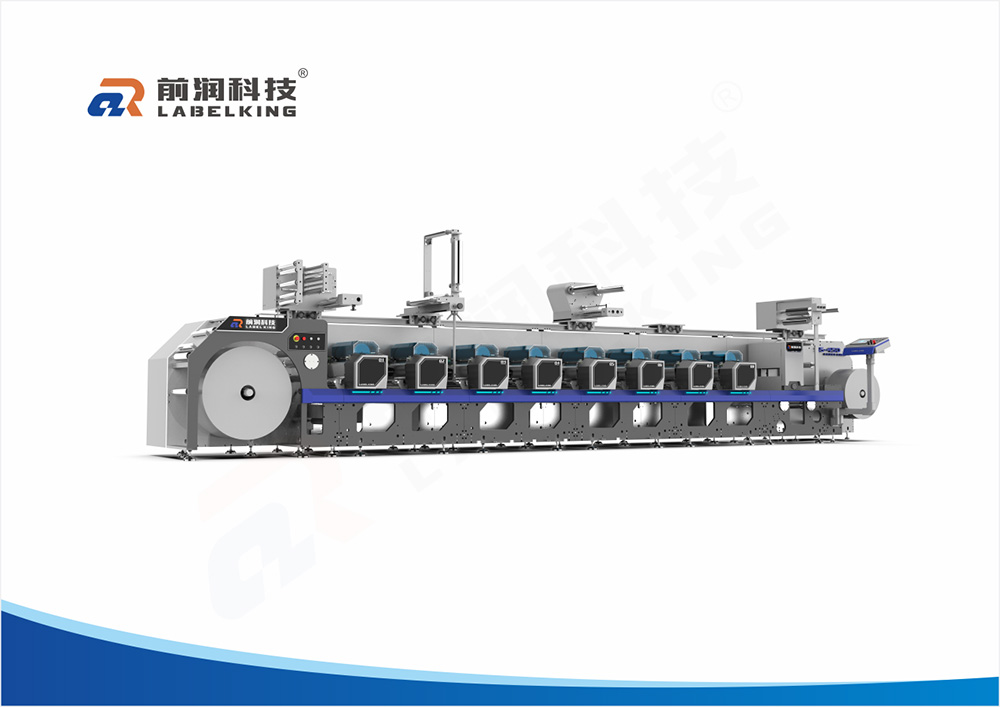

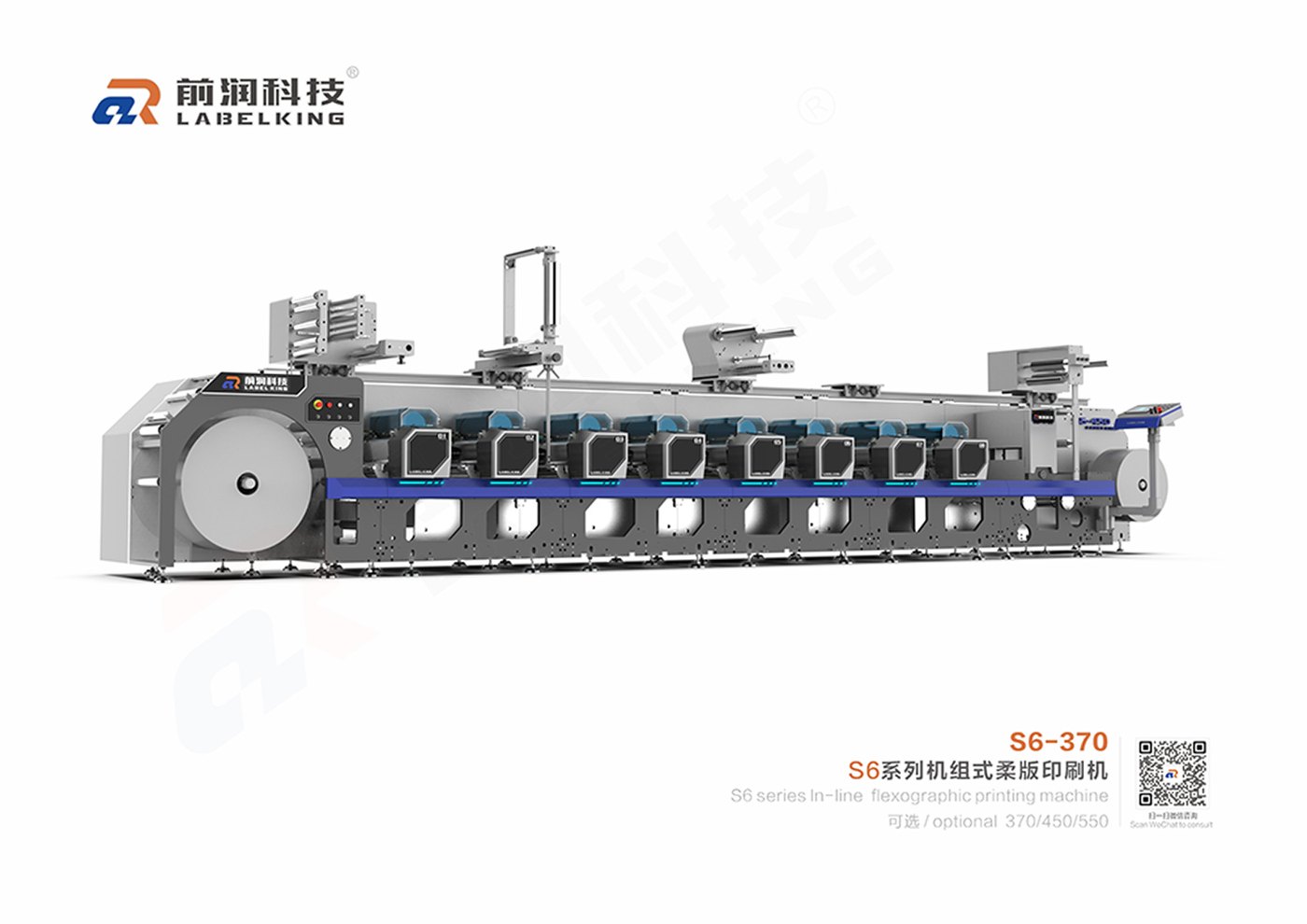

产品图片 / Product Images

产品介绍 / Product Introduction

1. 无轴传动：采用独立双伺服电机驱动，支持在线自动预套印和追套印功能，调校过程简便高效，大幅减少人工操作成本，确保印刷过程稳定精准，避免套印偏差。
Shaftless Drive: Adopts independent dual servo motor drive, supports online automatic pre-registration and over-registration functions, the adjustment process is simple and efficient, greatly reducing manual operation costs, ensuring stable and accurate printing process and avoiding overprinting deviation.

2. 高效印版滚筒：采用花瓣式结构设计，换版操作快捷便捷，无需进行大幅调节，有效避免墨杠问题出现，既提升了换单效率，又保障了印刷品质的一致性。
Efficient Plate Cylinder: Adopts petal-shaped structure design, plate changing operation is fast and convenient, no need for large-scale adjustment, effectively avoiding ink bar problems, which not only improves the order change efficiency, but also ensures the consistency of printing quality.

3. 大尺寸承印辊：配备专业水冷装置，对无支撑薄膜材料具有较好的适应性，可广泛应用于多种薄膜材料的印刷，包括PET、OPP、CPP、PP等，进一步拓宽设备的适用范围。
Large-Size Anvil Roller: Equipped with a professional water cooling device, it has good adaptability to unsupported film materials, and can be widely used in the printing of various film materials, including PET, OPP, CPP, PP, etc., further expanding the application range of the equipment.

4. 智能不停机系统：可选配不停机收放卷系统，支持手动与自动接纸两种模式，有效减少生产中断，显著提高生产效率；搭载全视觉自动套印系统，可实现自动套印及数据保存，返单时一键调取相关参数即可自动套准，大幅缩短返单生产周期。
Intelligent Non-Stop System: Optional non-stop unwinding and rewinding system, supporting both manual and automatic paper connection modes, effectively reducing production interruptions and significantly improving production efficiency; equipped with a full-visual automatic overprinting system, it can realize automatic overprinting and data storage, and can automatically register by calling relevant parameters with one click when reordering, greatly shortening the reorder production cycle.

5. 多功能印刷：以柔版印刷为核心，全面支持冷烫、覆膜、除胶、多层标签、折页标签、在线品检、模切等多种工艺，同时可根据生产需求，选配丝印、喷码、凹版等联机功能，实现多道工序一站式完成，无需额外衔接设备。
Multifunctional Printing: Taking flexographic printing as the core, it fully supports various processes such as cold stamping, lamination, glue removal, multi-layer labels, folding labels, online inspection, die-cutting, etc. At the same time, it can be equipped with optional online functions such as screen printing, inkjet printing and gravure according to production needs, realizing one-stop completion of multiple processes without additional connection equipment.

6. 便捷收放料：配备独立料卷升降机构，采用自动化控制模式，有效减轻操作人员的劳动强度，提升收放料操作的便捷性与效率，保障生产流程顺畅有序。
Convenient Unwinding and Rewinding: Equipped with an independent material roll lifting mechanism, adopting automatic control mode, effectively reducing the labor intensity of operators, improving the convenience and efficiency of unwinding and rewinding operations, and ensuring the smooth and orderly production process.

前润S6系列机组式柔版标签印刷机集高效、精准、便捷、多功能于一体，可满足不同行业的标签印刷需求，为企业降低生产成本、提升生产效率提供有力支撑。
In summary, the Qianrun S6-370 unit-type flexographic label printing machine integrates high efficiency, precision, convenience and multi-function, which can meet the label printing needs of different industries and provide strong support for enterprises to reduce production costs and improve production efficiency.

技术参数 / Technical Parameters

材料宽度 Substrate Width	Max. 370 mm
印刷宽度 / Printing Width:	Max. 370 mm
印刷色组 / Printing Stations:	10
印刷纸张厚度范围 / Paper thickness:	35-350gsm
印刷重复周长范围 / Print Repeat：	222-620mm
机器机械速度 / Print Repeat：	200 m/min
机器机械速度 / Machine Speed：	200 m/min
放卷直径：/ Unwinder Reel Diameter	Φ1000 毫米
收卷直径 / Rewinder Reel Diameter:	Φ1000 毫米
齿轮规格 / Rewinder Reel Diameter:	1/8“，齿距3.175mm / 1/8“，pitch3.175mm
干燥系统 / 1/8“，pitch3.175mm	可选UV汞灯、LED UV、热风干燥 / Optional UV mercury lamp, LED UV, Hot air drying
套准精度：/ Accuracy：	≤±0.10mm
供电需求 / Power supply:	380VAC±5%，三相50/60赫兹 / 3-phase 50/60 Hz
操作语言 / Manipulation language	中文/英文 / Chinese/English

备注： 1.产品外观以实际产品为准，技术参数与型号如有变动，恕不另行通知。
The product appearance shall be subject to the actual product. Technical parameters and models are subject to change without prior notice.

2.了解更多前润科技产品信息请进入产品中心。服务热线：18028235969
For more products of Qianrun Technology, please visit our Product Center.Service Hotline: 18028235969

行业应用 / Industry Applications

特殊酒标：红酒酒标、白酒标、白兰地洋酒等； Special wine labels: red wine labels, white wine labels, brandy and other foreign wine labels, etc.
家居：厨房、卫浴间天花吊顶； Home applications: kitchen and bathroom ceiling materials.
工业：文具盒、砂轮标盒等； Industrial applications: pencil cases, grinding wheel label boxes, etc.
医药：口服胶囊固定板密封铝铂、药罐密封包装； Pharmaceutical applications: oral capsule blister sealing foil, medicine can sealing packaging.
食品：罐头口密封包装； Food applications: can lid sealing packaging.
不干胶标签、食品包装、烟包酒标、物流商超、医药行业、电子行业、日化等印刷领域
Adhesive Labels、Food Packaging、Cigarette & Wine Labels、Logistics & Supermarkets、Pharmaceutical Industry、Electronics Industry、Daily Chemicals & Other Printing Applications
可根据客户要求定做机型RS260/340/460 2-22色
Customizable models (RS260/340/460)8-12色 available according to customer requirements.

产品视频 / Product Videos

常见问题

1S6相比S5的核心升级是什么？为什么更适合薄膜材料？

S6采用无轴传动（独立双伺服驱动），取消传统机械长轴，每个色组独立伺服驱动，精度更高、响应更快、维护更少。关键升级是大尺寸承印辊+水冷装置，印刷时材料受热不变形，特别适合PET、OPP、CPP等易受热变形的薄膜材料。

2S6的无轴传动相比传统传动有什么优势？

S6相比S5的核心升级是无轴传动（Shaftless Drive）：①传统传动——各色组之间用一根长机械轴连接，所有色组同步转动，轴的弯曲、磨损会影响套印精度；②无轴传动——取消机械长轴，每个色组由独立双伺服电机驱动，通过电子齿轮同步（精度±0.001mm），响应速度更快、套印精度更高；③维护更少——无长轴意味着无轴承磨损、无轴对中问题，维护周期延长50%；④扩展灵活——增加色组时只需加装伺服单元，无需改动长轴长度。S6的无轴传动特别适合薄膜材料印刷——响应快可快速补偿张力波动，精度高确保套印稳定。

3S6的大尺寸承印辊+水冷是怎么防薄膜变形的？

薄膜材料（PET、OPP、CPP）受热容易收缩变形，S6通过两个措施解决：①大尺寸承印辊——直径比S5大30%-50%，材料与辊筒接触面积增大、包角增大，材料在辊筒上的支撑更充分，减少因局部受力不均导致的拉伸变形；②水冷装置——在承印辊内部通循环冷却水（温度可控在20-25℃），快速带走UV固化产生的热量，防止材料温度升高。实测数据：印刷PET薄膜时，S6材料表面温度控制在35℃以下，而普通设备可达50-60℃，温差显著降低薄膜收缩率（从0.3%降至0.05%），套印精度提升20%以上。

4S5/S6系列最多支持多少色组？花瓣式印版滚筒有何优势？

S5/S6支持2-14色灵活配置。采用花瓣式印版滚筒结构，换版快、无需大幅调整、不产生墨杠（深浅不均条纹）。打个比方：就像旋转卡口换灯泡，一拧就换好，不用拆灯罩。8色机配备27个伺服电机，每个色组独立驱动，套印精度与响应速度远超传统机械传动。

5卫星式柔印机与机组式柔印机怎么选？

卫星式适合：高精度、大批量、不变形的标准标签，主打稳定、精细。机组式适合：全品类材料+特种软包+收缩膜，材质不限、工艺灵活、订单适配更广。大批量精品标签订单优先选卫星式。

6S5和S6的幅宽和色组范围是一样的吗？

是的，S5和S6在幅宽和色组范围上完全一致：①幅宽——均有370mm/450mm/550mm三种可选；②色组——均可配置2-14色，常见配置为6色（CMYK+白+光油）或8色（CMYK+两专色+白+光油）；③印刷周长——均为203.2-635mm（8-25英寸）；④最大走纸速度——均为200m/min；⑤放卷收卷直径——均为1000mm。两者的核心差异在传动方式（S5常规传动、S6无轴传动）和薄膜适应性（S6有大尺寸承印辊+水冷），其他参数相同。选型建议：以纸张类材料为主选S5性价比更高；以薄膜材料为主或追求更高精度选S6。

7S6相比S5的核心升级是什么？

S6是S5的升级版本，核心升级包括：①进一步优化刮刀系统，减少油墨飞溅；②提升套准稳定性；③增强薄膜材料适应性；④优化操作界面和人机交互；⑤整体机械精度进一步提升。

8S5-370机组式柔版印刷机的材料宽度是多少？

S5-370机组式柔版印刷机最大材料宽度370mm，最大印刷宽度370mm，印刷色组10色，印刷纸张厚度范围35-350gsm，印刷重复周长范围222-620mm。

9S5系列柔印机可以印刷热收缩膜吗？

可以。S5系列适配PVC收缩膜、PET收缩膜、OPS收缩膜等热收缩套标材料，通过分段独立张力+低温烘干可控，印刷后不提前收缩、不变形、套印精准。

10S5柔版机的最大走纸速度200m/min是什么概念？

200m/min是S5的最高机械速度，实际产能换算：①按50mm标签周长——每分钟走200米÷0.05米=4000个标签周期，若一版多列（如2列）则出8000张/分钟，480000张/小时；②按100mm周长——约2400个周期/分钟；③按200mm周长——约1000个周期/分钟。实际生产中受开机率（70%-80%）、换单时间、良品率（95%-98%）影响，有效产能约为标称的50%-60%。200m/min在柔版印刷机中属于中高端水平，适合大批量连续生产（日化、食品、医药标签长单）。

售后保障

2h 报修2小时反馈结果

8h 疑难问题8H内提供解决方案

24h 24-48h内工程师到达贵司
