产品图片 / Product Images

产品介绍 / Product Introduction

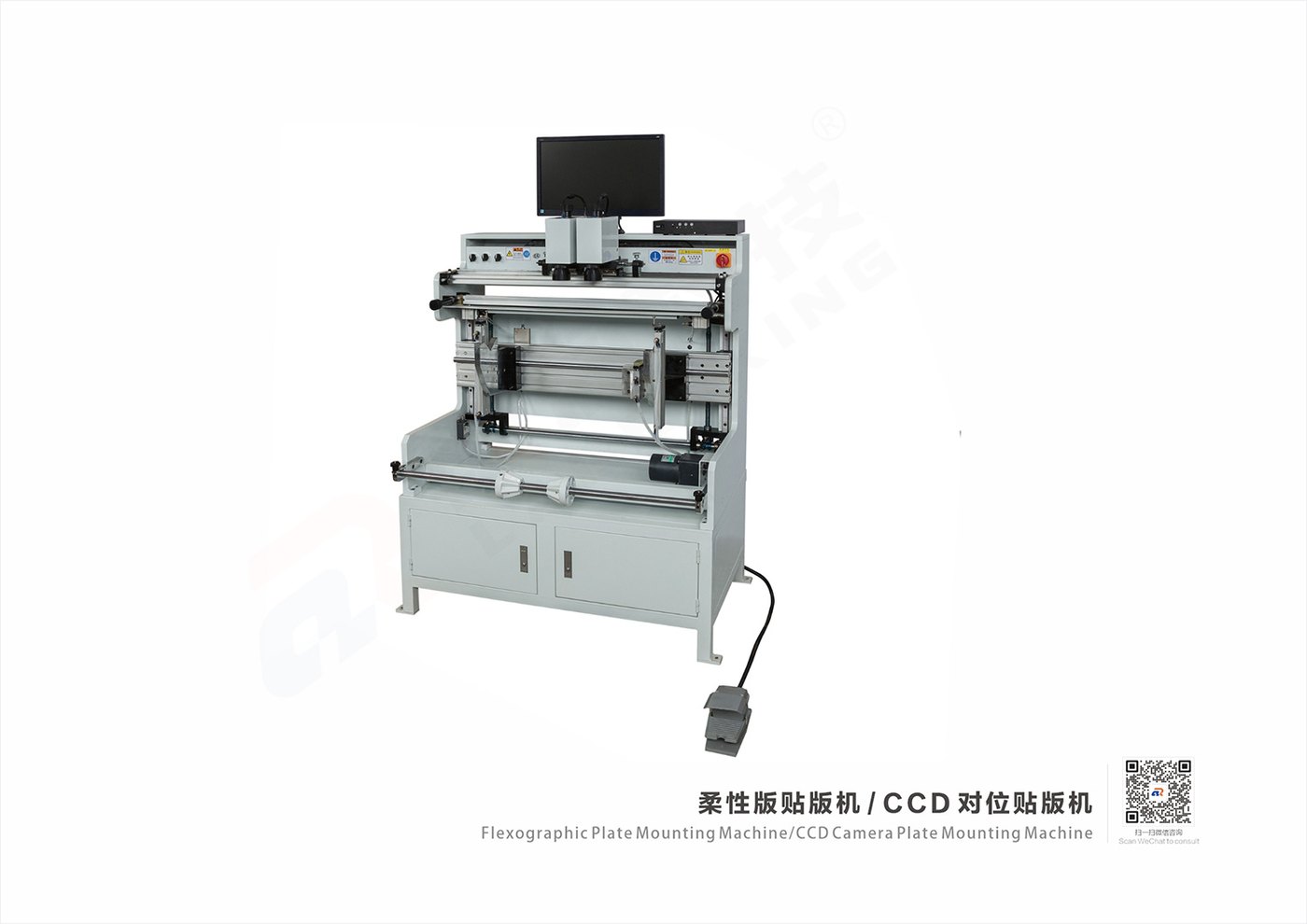

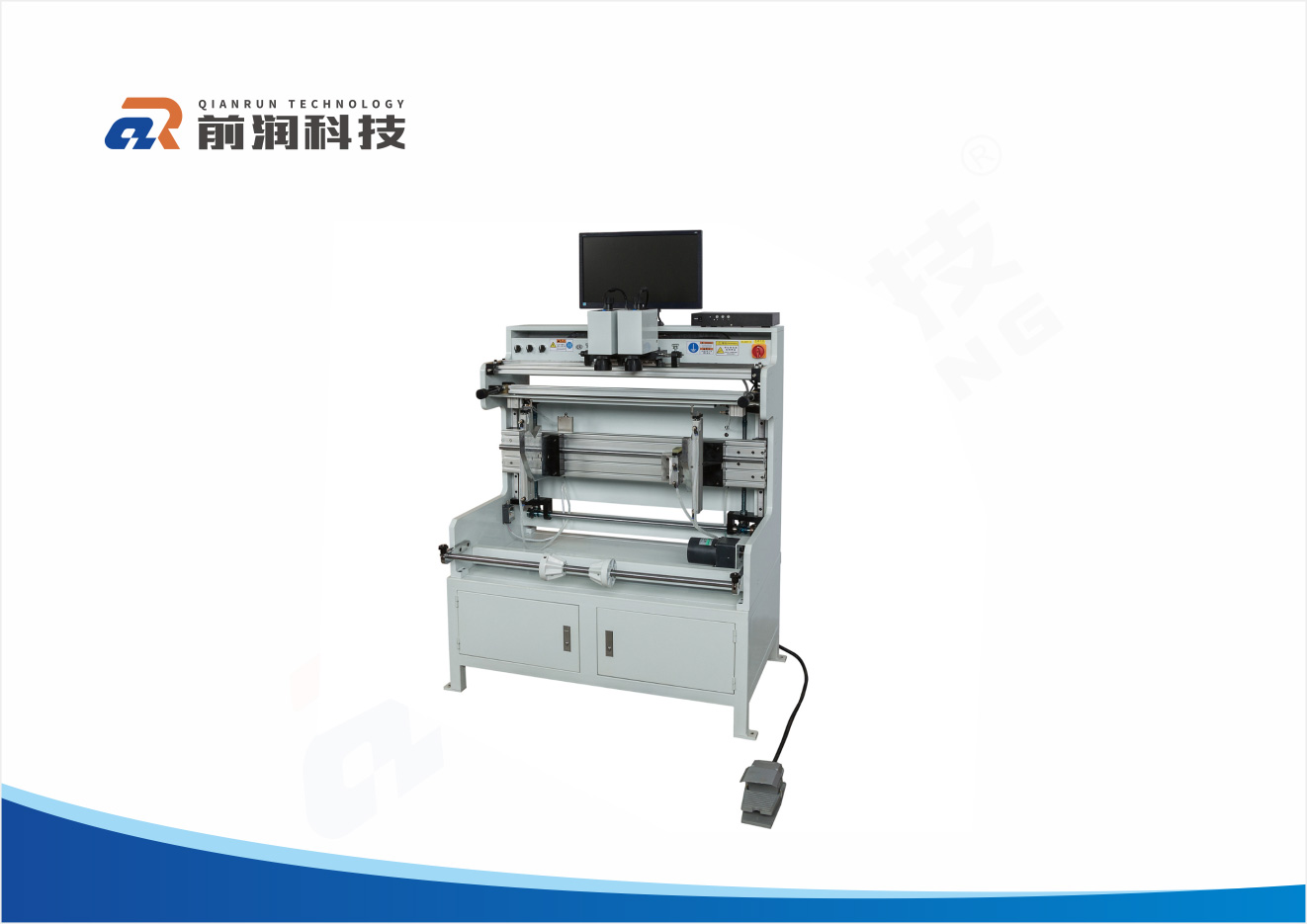

本设备是柔版印刷与树脂凸版印刷的关键配套设备，专为印版精准对位并装贴于印版滚筒而设计，采用 CCD 摄像头搭配高清显示屏实时放大观测，可对印版进行横向、纵向及斜向微调以保证套印精度，大幅节省贴版时间、减少人为误差，降低对位偏差造成的废品损耗；整机可适配不同品牌及规格的柔印机与树脂凸版印刷机，兼容各类尺寸和厚度的印版，是提升标签与软包装印刷品质的必备设备。
This equipment is a key auxiliary device for flexographic printing and resin relief printing, specially designed to accurately align and mount printing plates onto plate cylinders. It uses a CCD camera and high-definition monitor for real-time magnified observation, enabling horizontal, vertical and diagonal fine-tuning of the plates to ensure registration accuracy. It significantly reduces plate mounting time and manual errors, lowering waste caused by misalignment. The machine is compatible with flexographic and resin relief printing machines of different brands and specifications, supporting various plate sizes and thicknesses. It is an essential device for improving the printing quality of labels and flexible packaging.

1、高精度 CCD 视觉对位，套印误差可控
High-precision CCD visual alignment with controllable registration error

2、支持横向、纵向、斜向多维度微调
Multi-dimensional fine-tuning (horizontal, vertical and diagonal) supported

3、适配多种规格柔版、树脂凸版
Compatible with various sizes of flexographic plates and resin relief plates

4、电动微调 + 脚踏开关，操作便捷
Electric fine-tuning with foot switch for easy operation

5、大幅提升贴版效率，降低试机损耗
Greatly improves plate mounting efficiency and reduces trial waste

设备优势 / Advantages

6、相比传统手动贴版，精度与效率显著提升
Significantly improved accuracy and efficiency compared with traditional manual mounting

7、减少人工对位误差，降低废品率
Reduces manual alignment errors and lowers waste rate

8、通用性强，适配多品牌印刷机
High compatibility with printing machines of various brands

9、操作简单，无需复杂培训
Easy to operate without complex training

技术参数 / Technical Parameters

设备名称 / Equipment Name	Flexographic Plate Mounting Machine with CCD Visual Alignment
类型/ Type	650
最大贴版宽度 / Max. mounting width	650mm (customizable)
对位精度 / Alignment accuracy:	±0.01mm
电源 / Power supply:	220V 50Hz
适用版材 / Applicable plates:	柔性版、树脂凸版 / Flexographic plates, resin relief plates
操作语言 / Manipulation language	中文/英文 / Chinese/English

注意事项 / Notice
1.产品外观以实际产品为准，技术参数与型号如有变动，恕不另行通知。
The product appearance shall be subject to the actual product. Technical parameters and models are subject to change without prior notice.

2.了解更多前润科技产品信息请进入产品中心。服务热线：18028235969
For more products of Qianrun Technology, please visit our Product Center.Service Hotline: 18028235969

行业应用 / Industry Applications

不干胶、吊牌、保护膜、丝带、铝箔等卷装材料。
Self-adhesive labels, hang tags, protective films, ribbons, aluminum foils and other roll materials.

食品、电子、药品
Food, Electronics, Pharmaceuticals.

产品视频 / Product Videos

常见问题

1间歇式轮转的版筒怎么调整（左右/前后/对角）？

XQ-RI300系列的印版支持四维微调，方便快速对版：①左右调整——通过HMI输入横向偏移量，伺服电机自动调节版筒横向位置，精度±0.02mm；②前后调整——调节版筒轴向位置（前后移动），解决走纸方向套印偏差；③对角调整——微调版筒角度，解决材料走偏导致的对角线不对齐；④上下调整——调节印刷压力，适应不同厚度的材料（从35微米薄膜到300微米卡纸）。所有调整均可通过HMI界面数字输入，无需手动拧螺丝。熟练操作工在10-15分钟内可完成全套对版调试，数控机型还可保存参数，同一版筒第二次上机时一键调用。

2柔印机的版筒如何保养？

版筒保养要点：①定期清洁版筒表面，避免油墨干结；②检查版筒轴承运转是否顺畅；③定期润滑齿轮和传动部件；④存放时避免碰撞和腐蚀；⑤定期检查版筒圆跳动精度。

3商标机的版筒调整功能重要吗？

非常重要。版筒调整功能包括：左右调整（横向套准）、前后调整（轴向位置）、对角调整（纠正材料歪斜）。好的版筒调整系统可以实现±0.05mm的套准精度，且调整过程不需要停机。对于多色套印和精密标签（如电子标签），这是必备功能。

4轮转印刷机的版筒如何选配？

常见版筒结构有花瓣式版筒和套筒式版筒：套筒版筒换版轻便但寿命3-5年，花瓣式版筒机械重复精度高、版筒60秒快速装卸。前润S系列采用花瓣套筒混合版筒，兼顾精度与便捷。

5设备的质保与售后服务如何？

前润提供一年整机质保（核心部件延保两年），质保期内免费上门维修与更换零配件。标准验收及培训周期为一周。配备7×24小时技术热线，华南地区24小时、全国48小时上门响应。同时提供远程诊断、操作培训及定期巡检服务，确保设备长期稳定运行。

6间歇式轮转的版筒怎么调整？

间歇式轮转的版筒支持左右、前后、对角方向调整，通过精密微调机构实现±0.05mm级别的套准精度调节，确保多色套印的精准对齐。

7S系列柔印机的版筒结构有什么特点？

S系列采用花瓣结构版筒，结合了花瓣式结构的高精度机械重复性能和拆卸方便高效性能。版筒60秒快速装卸，重复定位精度高，减少换版时间和调机损耗。

8柔印机版筒演变经历了哪些代际？

版筒技术演变：第2代传统花瓣结构（机械齿轮传动，耐用但可能产生齿轮墨杠）→ 第3代套筒版筒（玻璃纤维套筒，换版轻便但寿命3-5年）→ 第4代花瓣套筒混合版筒（三辊独立伺服，兼顾精度和便捷）。前润S系列属于花瓣结构优化版。

9RF系列的版筒结构是什么？

RF系列采用套筒式版筒结构（Sleeve type），版材厚度1.7mm/1.14mm或按需求定制。套筒结构换版快捷，减轻操作人员劳动强度，提升换版效率。

10RF系列的版筒寿命大约多久？

RF系列套筒式版筒在正常使用和维护条件下，寿命通常为3-5年。定期清洁保养、避免碰撞和过载使用可延长版筒使用寿命。磨损严重的版筒应及时更换以保证印刷品质。
